Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly

Szczegóły Produktu:

Miejsce pochodzenia:	NIEMCY
Nazwa handlowa:	Contitech
Orzecznictwo:	ISO/TS16949:2009
Numer modelu:	FS412-10

Zapłata:

Minimalne zamówienie:	5szt
Cena:	USD179.9-199.9/PC
Szczegóły pakowania:	Silny pudełko kartonowe lub jako wymagania klientów
Czas dostawy:	3-7 dni roboczych
Zasady płatności:	L/C, T/T, Western Union lub inne
Możliwość Supply:	1000 szt./tydzień

Kontakt

Szczegółowy opis produktu

Nazwa przedmiotu:	Gumowa sprężyna powietrza	Tworzywo:	Guma i stal
OEM:	Tak	Gwarancja:	12 miesięcy
inne imię:	gumowe miotacze powietrza	Contitech:	FS412-10
Guma nr.:	12" x 1	Norgren:	M/31121
Podkreślić:	Contitech rubber air spring , single convoluted airbag assembly , FS 412-10 air spring

Original Contitech Rubber Air Spring FS 412-10 Single Convoluted Airbag Assembly

Industrial air spring designed for industrial machine applications, featuring imported natural rubber construction and gas-filled operation.

Item Name	Industrial Air Spring
Model No.	FS412-10
Brand	CONTITECH
Warranty	12 Months
Type	Convoluted Air Spring
Service Offered	OEM
Suspension System	Air Spring Suspension
Applications	For Industrial Machine
Material	Imported Natural Rubber
Operation	Gas-filled
Package	Standard Packing Or Customized

Original CONTITECH Part Numbers

FS412-10
FS 412-10
FS412-10 DS
FS 412-10 DS
FS412-10 DS 67962
FS 412-10 DS 67962

Compatible Replacement Models

FIRETSONE Part Number: W01R584060 / w01R584060
FIRETSONE Part Number: W01-R58-4060 / w01-R58-4060
FIRETSONE Part Number: W01 R58 4060 / w01 R58 4060
FIRETSONE Style Number: 12X1 / 12''x1 / 12''X1
DUNLOP FR Part Number: 12''x1
DUNLOP FR Part Number: SP1540
DUNLOP UK(PNEURIDE): PNP305520120
DUNLOP UK(PNEURIDE): PNP 305520120
DUNLOP UK(PNEURIDE): PNP 30552 01 20
NORGREN Part Number: M/31121
NORGREN Part Number: M 31121
NORGREN Part Number: M31121
NORGREN(inch)xConvolutions: 12''X1 / 12X1 / 12''x1
PARKER Part Number: 9109044
PARKER Part Number: 12''x1 9109044

FS 412-10 Contitech Air Spring Technical Data

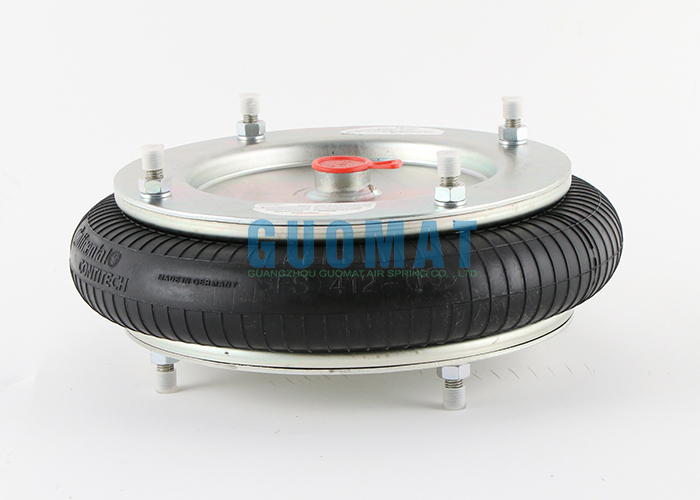

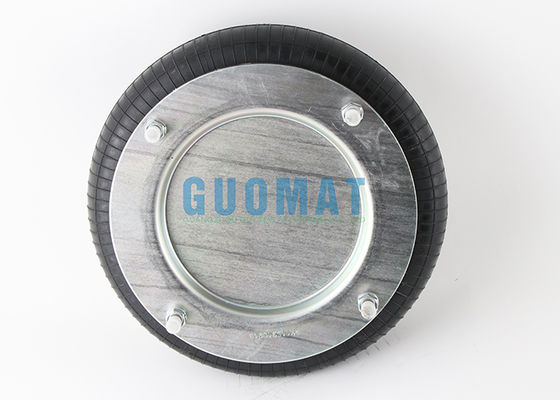

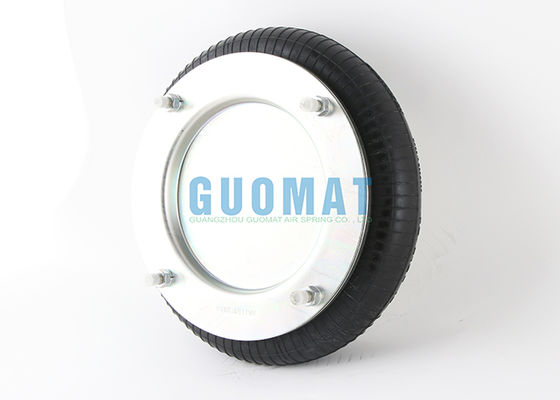

The FS 412-10 Contitech air spring is a single-convoluted type model. The top cover plate has a diameter of 260mm and four M10 bolts with a center-to-center distance of 232mm. The air vent is G1/2 and located in the center of the cover plate. The bottom cover plate also has a diameter of 260mm and four M10 bolts with a center-to-center distance of 232mm. The rubber bellows have a maximum outer diameter of 330mm. Maximum height is 150mm, Minimum height is 50mm.
