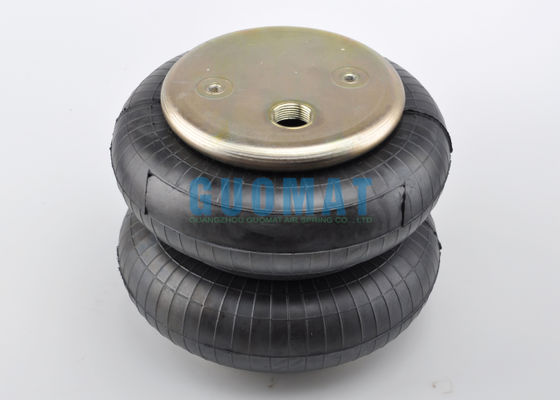

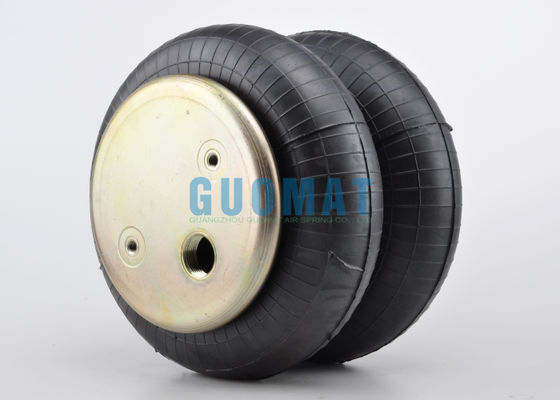

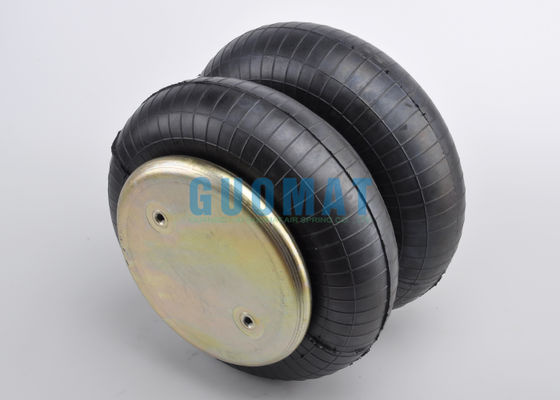

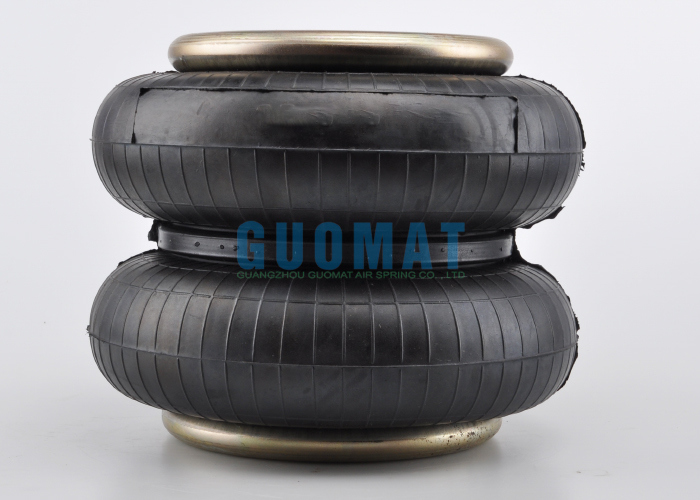

W01-M58-6147 Firestone Convoluted Air Spring 2392114 SCANIA Suspension Air Shock

Szczegóły Produktu:

Miejsce pochodzenia:	Guangdong, Chiny
Nazwa handlowa:	GUOMAT
Orzecznictwo:	ISO/TS16949, ISO9001
Numer modelu:	2B6147

Zapłata:

Minimalne zamówienie:	5
Cena:	US$59.9-69.9/PC
Szczegóły pakowania:	Silny pudełko kartonowe lub jako wymagania klientów
Czas dostawy:	5-8 dni roboczych
Zasady płatności:	L/C, D/A, D/P, Western Union
Możliwość Supply:	1000pcs/tydzień

Kontakt

Szczegółowy opis produktu

Znak firmowy:	Guomat	Tworzywo:	Guma i stal
Funkcjonować:	Zmniejsz szok	Stan:	Zupełnie nowy
Ognisty ton:	W01-M58-6147	Złożone:	2
Waga:	5,9 kg	Wysokość projektu:	241 mm
Podkreślić:	Firestone air spring for Scania , Convoluted suspension air shock , Scania air spring 2392114

W01-M58-6147 Firestone Convoluted Air Spring 2392114 SCANIA Suspension Air Shock

Product Introduction

A suspension air spring is an elastic element that uses compressed air as its working medium. Enclosed within a cavity composed of a flexible membrane (rubber) and metal components, it leverages the compressibility of air to achieve its elastic action.

Compared to traditional steel coil springs, its core advantage lies in variable stiffness and adjustable vehicle height. Through the coordination of an electronic control system and an air supply unit, it automatically adjusts internal air pressure based on road conditions and driving mode, achieving a balance between comfort and support. It also automatically maintains vehicle height even when the vehicle load changes.

As a result, it is widely used in high-end passenger cars, commercial vehicles, and other applications with specific vehicle height requirements, significantly improving ride smoothness and handling stability.

Product Information

Product Name: Suspension Air Spring

Model Number: 2B6147

Material: Rubber and Steel

Warranty: 12 Months

Delivery Time: 3-7 Working Days

Product OEM Number

Firestone Part Number: W01-M58-6147 / WO1-M58-6147

Firestone Part Number: W01 M58 6147 / WO1 M58 6147

Firestone Part Number: W01M586147 / WO1M586147

Firestone Bellows Number: 228C1.5

Scania OEM Number: 2392114

Scania OEM Number: 5776010

Scania OEM Number: 2326609

Fabio Number: 2DC-320-10C

Product Technical Data

Top Cover Plate Diameter	227mm
Bottom Cover Plate Diameter	227mm
Gas Hole / Air inlet	M14X1.5
Rubber Bellows Diameter	300mm
Natural Height	241mm
Top Cover Plate Screw (Nut) Tooth	2XM10X1.5
Bottom Cover Plate Screw (Nut) Tooth	2XM10X1.5
Screw Center Distance of Top Cover Plate	157.5mm
Screw Center Distance of Bottom Cover Plate	157.5mm
