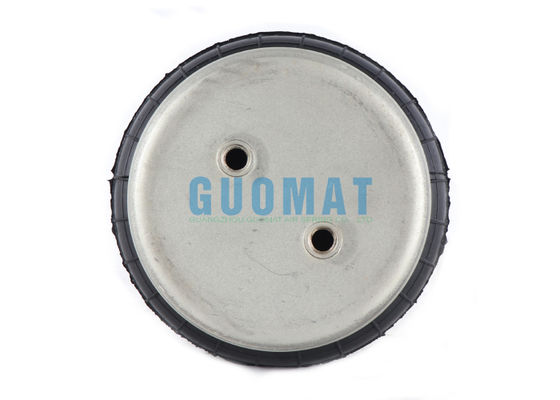

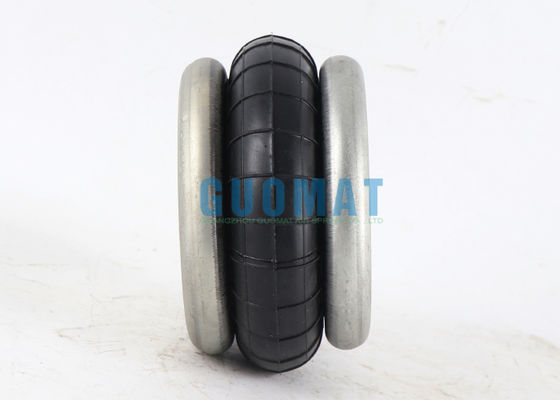

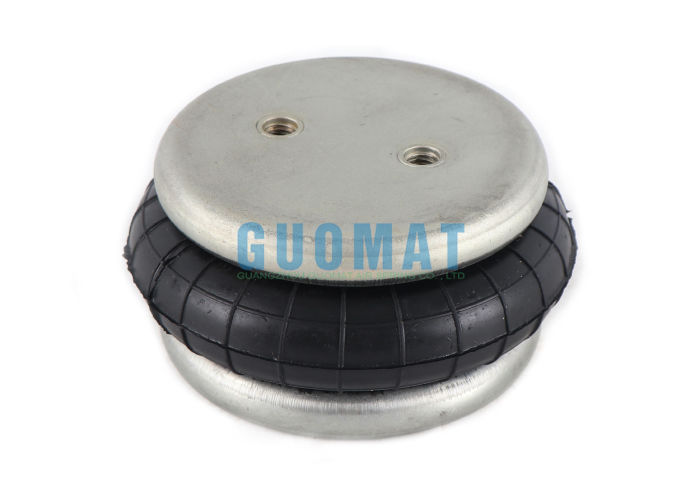

W01-358-7001 Firestone Bellow Air Spring Style 16 Single Convoluted Air Ride Suspension

Szczegóły Produktu:

Miejsce pochodzenia:	Guangdong, Chiny
Nazwa handlowa:	GUOMAT
Orzecznictwo:	ISO/TS16949, ISO9001
Numer modelu:	1B7001

Zapłata:

Minimalne zamówienie:	1
Cena:	$49.9-$59.9/PC
Szczegóły pakowania:	Silny pudełko kartonowe lub jako wymagania klientów
Czas dostawy:	5-8 dni roboczych
Zasady płatności:	L/C, D/A, D/P, Western Union
Możliwość Supply:	1000pcs/tydzień

Kontakt

Szczegółowy opis produktu

Znak firmowy:	GUOMAT	Jakość:	100% przetestowane
Zamiar:	Zmniejsz szok	Usługa po sprzedaży:	12 miesięcy
Ognisty kamień:	W01-358-7001	Wlot powietrzny:	1/4 NPT
Typ:	Pojedynczy zwinięty typ	Inne nazwy:	Sprężyna powietrzna, poduszki powietrzne, ryk powietrzny
Podkreślić:	Firestone single convoluted air spring , industrial air ride suspension bellow , Style 16 air spring with warranty

W01-358-7001 Firestone Bellow Air Spring Style 16 Single Convoluted Air Ride Suspension

Product Specifications

Trademark	GUOMAT
Quality	100% Tested
Purpose	Reduce Shock
After-sales Service	12 Months
Firestone	W01-358-7001
Air Inlet	1/4 NPT
Type	Single Convoluted Type
Other Name	Air Spring, Air Bags, Air Bellow

Product Details

Product Name	Industrial Air Spring
Warranty	1 Year
Place of Origin	GuangDong China
Brand Name	GUOMAT
Certification	ISO/TS16949:2009
Model No.	1B7001
Condition	New
Other Name	Convoluted Rubber Air Spring

OEM Numbers

FIRESTONE Part Number: W01-358-7001
FIRESTONE Part Number: W01 358 7001
FIRESTONE Part Number: W013587001
FIRESTONE Part Number: WO1-358-7001
FIRESTONE Part Number: WO1 358 7001
FIRESTONE Part Number: WO13587001
FIRESTONE Style Number: 16

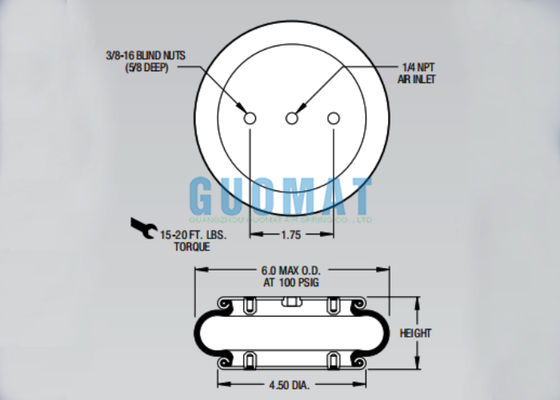

Technical Data

Max. stroke: 2.6 in / 41 mm

Max. load: 1,720 psi / 6.93 kN

Max. diameter: 6.0 in / 152 mm

Max. height: 3.5 in / 89 mm

Min. height: 1.9 in / 48 mm

Max. recommended operational height: 3.3 in / 84 mm

Diameter plate: 4.5 in / 114 mm

Mounting thread: 2x3/8-16 UNC

Air inlet: 1/4 NPT

Temperature range: -40°C / +70°C

Compatible Models

Firestone Number	Description
W01-358-7001	Blind nuts, 1/4 NPT
W01-358-6996	Blind nuts, 3/4 NPT
W01-358-0017	Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)
W01-358-0286	3/4 NPT (only) upper plate, blind nuts lower plate
W01-358-0010	Rubber bellows only

Installation and Precautions

Installation Steps:

Pre-installation Inspection
- Inspect the product for shipping damage (such as cracks, deformation, scratches, etc.)
- Ensure the installation area is clean, flat, and free of oil, rust, or sharp objects
- Check that the supplied fasteners meet the equipment requirements
Correct Installation Position
- Confirm the air spring installation direction and valve orientation
- Ensure the airbag is not twisted or overstretched
Tightening and Sealing
- Use a torque wrench to tighten bolts to specified torque value
- Ensure sealing gasket is intact and evenly distributed for flange connections
- Use dedicated air pipe connectors with clamps
Inflation and Commissioning
- Confirm system pressure meets requirements before connecting air source
- Inflate slowly, observing for even expansion
- Adjust air pressure to ensure load balance
Post-Installation Testing
- Run device unloaded to check for proper function
- Perform load test to verify shock absorption and stability
