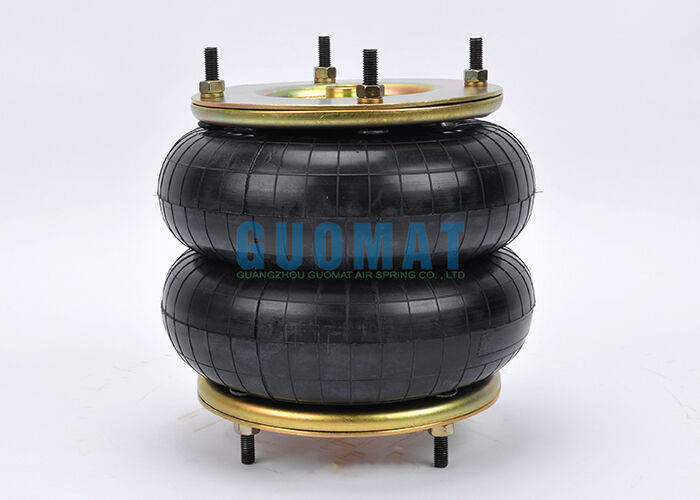

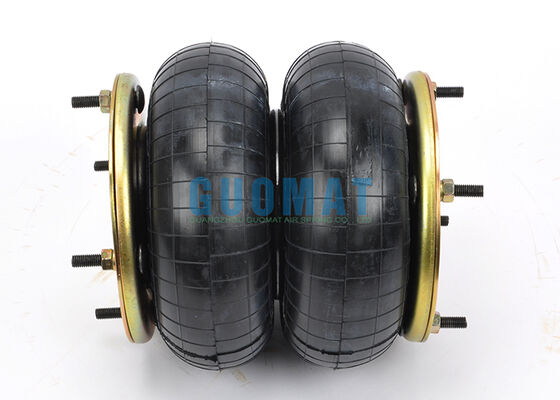

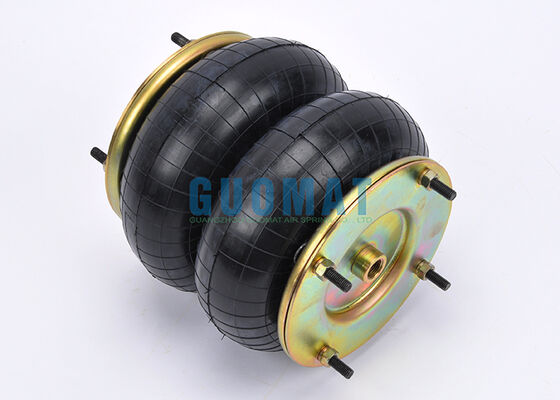

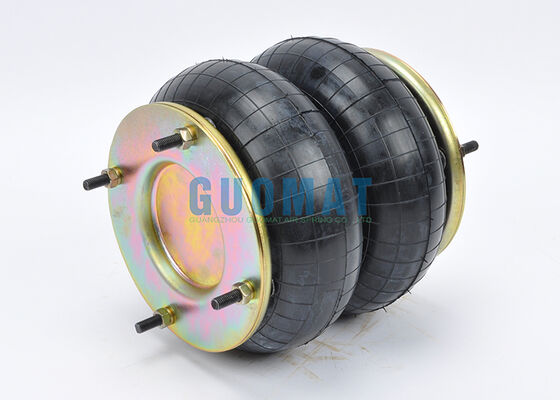

14 1/2" X 2 Parker Removable Air Bellows 9109061 Firestone Trailer Suspension Air Spring W01R584064

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	GUOMAT
Orzecznictwo:	ISO/TS16949:2009
Numer modelu:	2B14.5X2T

Zapłata:

Minimalne zamówienie:	6szt
Cena:	US$159.9-199.9/PC
Szczegóły pakowania:	Mocne pudełko kartonowe lub według potrzeb klientów
Czas dostawy:	3-7 dni roboczych
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union
Możliwość Supply:	1000 sztuk/tydzień

Kontakt

Szczegółowy opis produktu

Nazwa:	Gumowa sprężyna powietrza	Nazwa modelu:	Sprężyna pneumatyczna zawieszenia
Funkcjonować:	Zmniejsz szok	Stan:	Zupełnie nowy
Typ wiosny powietrza:	Podwójnie zawiłe	Temperatura pracy:	-40 ℃ + 70 ℃
Ognisty Kamień:	W01-R58-4064	Contitech:	FD 614-26 DS
Podkreślić:	14 1/2" Parker removable air bellows , Firestone trailer suspension air spring , W01R584064 air spring with warranty

14 1/2" X 2 Parker Removable Air Bellows 9109061 Firestone Trailer Suspension Air Spring W01R584064

This double convoluted flange air spring is designed for trailer suspension systems, providing superior ride quality, load support, and vibration isolation.

Product Specifications

Type	Double Convoluted Flange Air Spring
Brand	GUOMAT
Model No.	2B14.5X2T
Material	Rubber and Steel
Warranty	12 Months
Convolutions	2

Cross-Reference Part Numbers

Continental ContiTech	FD 614-26 1/2 M10 (Order No.: 68046)
Continental ContiTech	FD 614-26 DS G1/2 (Order No.: 68046)
Dunlop FR	SP1556 (Bellows: 1412" x2)
Dunlop UK (Pneuride)	PNP 30414 01 17 (Bellows: 1412" x2)
Firestone	WO1-R58-4064 (Style: 14 1/2x2)
Goodyear	2B14-2650 (Flex No.: 578-92-3-2650)
IMI Norgren	M/31142
Oria	14 1/2x2
Parker	9109061 (Type: 14.1/2 x 2)
Pneumatis	DB1428 (Bellows: 14/2" x2)
Sopra	DB-1428 (Type: 141/" x2)
Torpress Montcada	0164240
Trelleborg Rubena	14 1/2" x2

Technical Data

Air Inlet	G1/2''
Rec/Max pressure(bar)	5,5/8
Force(N)@0 bar to H(mm)	210(75)
Weight(KG)	9,10
Ømaxi.	395mm
Øe	425mm
H static	180mm
H min.	70mm
H max.	295mm
H recommended	270mm

Trailer Suspension Air Springs Overview

Trailer suspension air springs are essential components in modern trailer suspension systems, providing superior ride quality, load support, and vibration isolation compared with traditional steel springs. They are widely used on semi-trailers, flatbed trailers, refrigerated trailers, tanker trailers, container chassis, livestock trailers, and heavy-duty commercial trailers.

By using compressed air to support vehicle weight, air suspension springs automatically adapt to changing load conditions, maintaining a consistent ride height regardless of whether the trailer is fully loaded or empty. This helps improve driving stability, reduce axle stress, and ensure more even tire wear.

During transportation, trailer air springs effectively absorb road shock and vibration caused by uneven road surfaces, potholes, and sudden impacts. This protects both the trailer structure and the cargo, making them especially suitable for transporting fragile goods, precision equipment, food products, electronics, pharmaceuticals, and other high-value freight.

In addition to improving ride comfort, trailer air suspension systems help reduce vibration transferred to the tractor and chassis, minimizing maintenance costs and extending the service life of suspension components, axles, tires, and trailer frames. Their durable rubber bellows construction also provides excellent resistance to fatigue, weather, and harsh operating environments.

GUOMAT trailer air springs are manufactured from premium rubber compounds and high-strength steel components to deliver reliable performance under demanding commercial transportation conditions. Designed as direct replacements for leading OEM brands, they offer excellent load-bearing capacity, long service life, and easy installation, making them an ideal solution for fleet operators, trailer manufacturers, and aftermarket maintenance providers worldwide.

Key Benefits
