| Miejsce pochodzenia: | Guangdong, Chiny |
| Nazwa handlowa: | GUOMAT |
| Orzecznictwo: | ISO/TS16949:2009 |
| Numer modelu: | 3B7808 |
| Minimalne zamówienie: | 6szt |
|---|---|
| Cena: | $69.9/pc-$79.9/pc |
| Szczegóły pakowania: | Mocne pudełko kartonowe lub według potrzeb klientów |
| Czas dostawy: | 2-8 dni roboczych |
| Zasady płatności: | T/T, Western Union, L/C |
| Możliwość Supply: | 1000 sztuk/tydzień |
| Nazwa przedmiotu: | Gumowa sprężyna powietrza | Materiał wiosenny: | Guma |
|---|---|---|---|
| Pakiet: | Brązowe pudełko kartonowe | Gwarancja: | 1 rok |
| Aplikacja: | Wyposażenie | Cross No.: | Firestone W01-358-7808 |
| Inna nazwa: | Torby Gumowe Mieszki | Złożone: | 3 |

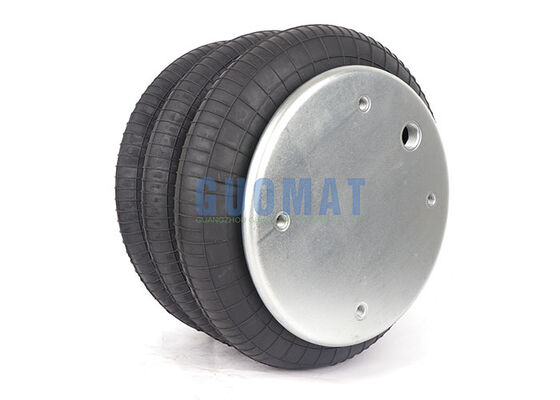

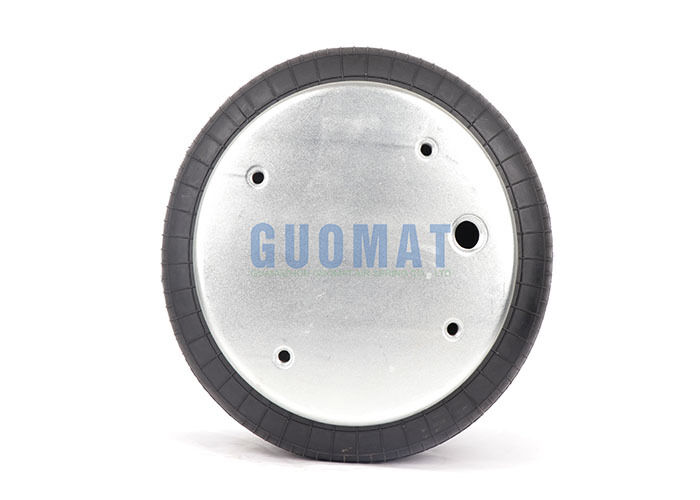

FD 330-22 364 Contitech Rubber Air Spring 2B12-313 Goodyear Pneumatic Vibration Isolator
Product Description
Item Name: Rubber Air Spring
GUOMAT NO.: 3B7808
Warranty: 1 Year
Material: Rubber+Steel
Replacement Part Number
| Cross Number | OEM Number |
|
Firestone W01-358-7808 Firestone 313 Contitech FD 330-22 364 Goodyear 2B12-313 Goodyear 2B12-459 Goodyear 578-93-3-350 Triangle 6319 Triangle 4336 Airkraft 115061 Airkraft 3B-356 |
Brake&Wheel:M3533 EI Ride: 8030170 Dayton: 3547808 Leland: Sc2031 Navistar: 554801C1 Hendrickson: S13157 Ridewell: 1003587808C SAF Holland: 57007808 Truck Stell: 63640 Peerless: 55000030 |
Technical Data
Overall length: 356 mm
Height/dimension: 282 mm
Center threaded port: 1/4 NPT (tapered pipe thread)
Four threaded holes: 3/8-16 UNC
Width: 289 mm
Repeated dimension: 158.8 mm (likely hole spacing or symmetric offset)
Rubber Air Spring for Die Cushion
A Rubber Air Spring for a Die Cushion is a pneumatic elastomer spring used in stamping and press machines to provide controlled counterforce during deep drawing, forming, and blank-holding operations. It is commonly used as a replacement for conventional coil springs, rubber pads, or hydraulic cushions because it provides a more uniform force throughout its stroke.
How it works
A rubber air spring consists of reinforced rubber bellows filled with compressed air. As the press operates, the air spring compresses and generates a nearly constant force over a wide range of travel, helping:
1.Control material flow during forming
2.Reduce wrinkling and tearing
3.Absorb shock loads
4.Improve part quality and tool life
