Original Goodyear 2B9-200 Super-Cushion Bellows Air Spring 578-92-3-202 Double Bellow Air Bag

Szczegóły Produktu:

Miejsce pochodzenia:	Meksyk
Nazwa handlowa:	Goodyear
Orzecznictwo:	ISO/TS16949:2009
Numer modelu:	2B9-200

Zapłata:

Minimalne zamówienie:	1 szt
Cena:	USD99.9-199.9/PC
Szczegóły pakowania:	Mocne pudełko kartonowe lub jako wymagania klientów
Czas dostawy:	3-7 dni roboczych
Zasady płatności:	L/C, T/T, Western Union lub inne
Możliwość Supply:	1000 sztuk/tydzień

Kontakt

Szczegółowy opis produktu

Znak firmowy:	Goodyear	Specyfikacja:	333322 cm
Pochodzenie:	Meksyk	Gwarancja:	jeden rok
Pozycja:	Przód i tył	OEM:	Tak
Numer Goodyear:	2B9-200	Min Wysokość:	3,2 cala
Podkreślić:	Goodyear Super-Cushion air spring , double bellow air bag , Goodyear 2B9-200 air spring

Original Goodyear 2B9-200 Super-Cushion Bellows Air Spring

Product Overview

The Goodyear 2B9-200 Super-Cushion Bellows Air Spring (578-92-3-202) is a premium double bellow air bag designed for superior vibration isolation and load support in demanding industrial applications.

Product Specifications

Goodyear Part Number	2B9-200 / 2B 9-200
Bellow Type	Double Bellow
Goodyear Bellow Number	578-92-3-202 / 578923202 / 578 92 3 202

Direct Replacement Models

This air spring directly replaces the following models:

CONTITECH: 64267, FD 200-19 320
AUTOMANN: ABSP2B12R-6910
DAYTON: 354-6910
DIN: AA-8127-19
FIRESTONE: 6910, W013586910
GRANNING: 1371
HDA: PMABG-6910B
HENDRICKSON: 45843-3B-8768
INT'L/NAVI STAR: 554783C1
LOAD GUARD: SC2011
MASA: 227138412
PREVOST: 63-0173
R&S TRUCK & BODY: 1027405
RIDEWELL: 1003586910C, S-4512-C
SPRINGRIDE: 2B9-492
TAURUSAS: 218-6910
TRIANGLE: 4320
TRP: AS69100
WATSON & CHALIN: AS-0001
GUOMAT: 2B6910

Application in Air Compressor Systems

The Goodyear 2B9-200 double convoluted air spring is engineered for air compressor systems where superior vibration isolation and operational stability are critical. During compressor operation, strong vibrations and dynamic loads can cause equipment wear, noise, and reduced service life.

By installing the 2B9-200 air spring, these vibrations are effectively absorbed and isolated from the base structure. This minimizes noise transmission and protects surrounding components from mechanical stress.

Compared to traditional metal springs or rubber mounts, the 2B9-200 air spring offers adjustable stiffness and load capacity through air pressure regulation, allowing compressors to maintain optimal performance under varying working conditions.

Key Benefits for Compressor Applications

Excellent vibration isolation and shock absorption
Reduced structural noise and resonance
Improved compressor stability during operation
Extended service life of equipment and components
Flexible load adjustment via air pressure control

The Goodyear 2B9-200 air spring is an ideal solution for enhancing the efficiency, durability, and overall performance of industrial air compressor systems.

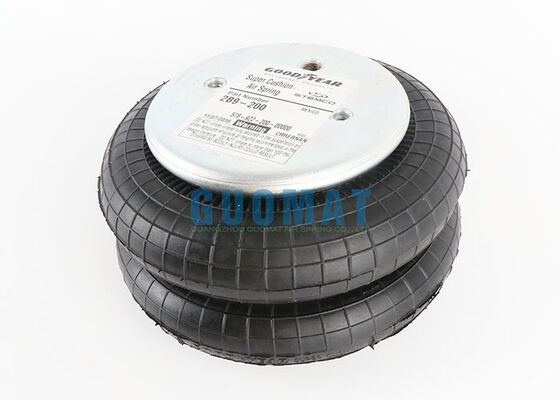

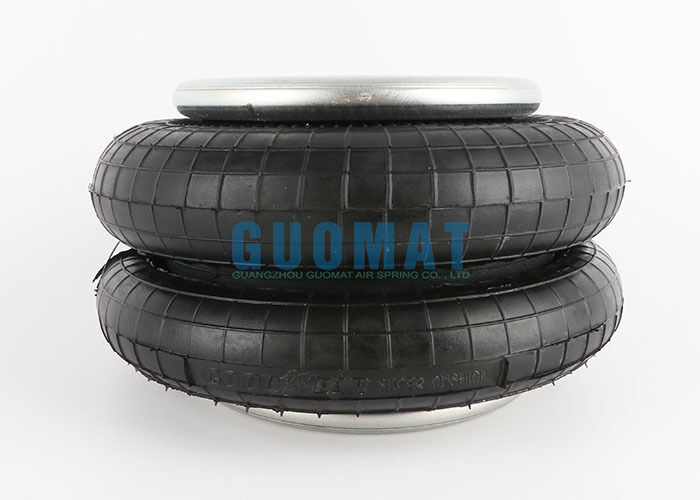

Product Images
