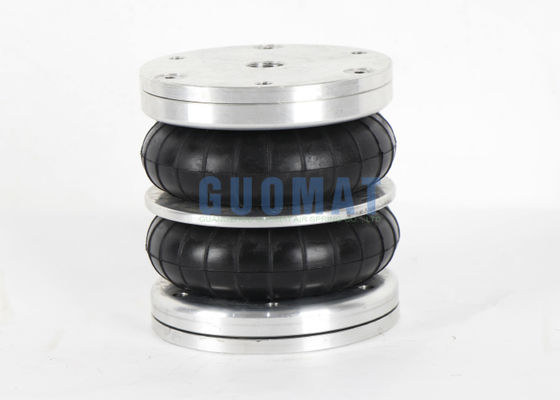

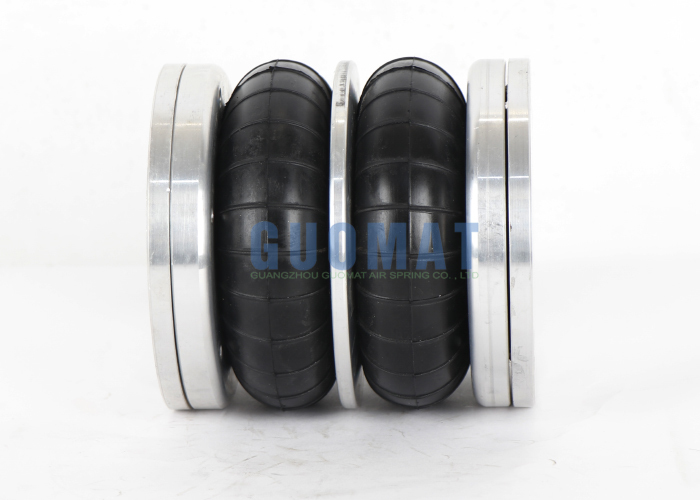

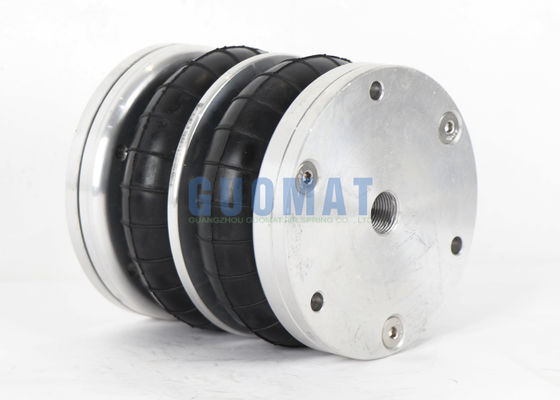

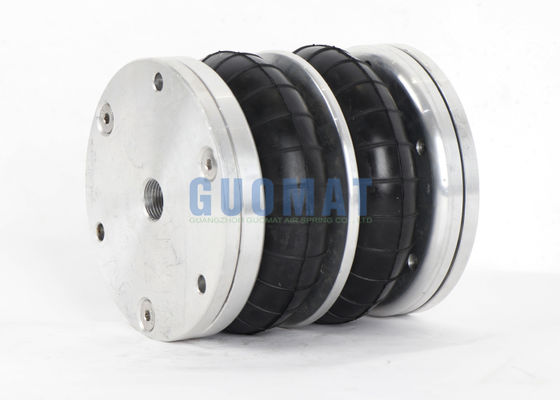

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring

Szczegóły Produktu:

Miejsce pochodzenia:	Guangzhou, Chiny
Nazwa handlowa:	GUOMAT
Orzecznictwo:	ISO/Ts16949:2009
Numer modelu:	2B4.5X2P

Zapłata:

Minimalne zamówienie:	6pcs
Cena:	$89.9-99.9/pc
Szczegóły pakowania:	Opakowanie lub opakowanie kartonowe zgodnie z wymaganiami klientów
Czas dostawy:	5-8 dni roboczych
Zasady płatności:	L/C, T/T, Western Union
Możliwość Supply:	10 000 tygodniowo

Kontakt

Szczegółowy opis produktu

Nazwa produktu:	Sprężyna powietrza zawieszenia	Materiał wiosenny:	Guma naturalna+pokrywa aluminiowa
Jakość:	Testowane 100 %	Gwarancja:	12 miesięcy
Kolor:	Czarny	Contitech:	FD 44-10 di
Złożone:	2	Firestone:	W01R584051
Podkreślić:	Firestone suspension air spring , double convoluted rubber bellows , 4 1/2 inch balloon spring

4 1/2" x 2 Double Convoluted Rubber Bellows W01-R58-4051 Firestone Suspension Balloon Spring

High-quality air spring designed for heavy duty truck suspension systems, manufactured with rubber and steel components.

Product Specifications

Item	Value
Part Number	2B4.5x2P
Type	Air Spring
Warranty	12 Months
Truck Model	Heavy Duty Truck
Color	Black
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Material	Rubber + Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Auto/Truck parts
Application	Auto Suspension Systems

FD 44-10 DI Contitech Air Spring Technical Data

Maximum Height	150mm
Minimum Height	65mm
Cover Diameter	110mm
Number of Threaded Holes (Top Cover)	3
Threaded Hole Size (Top Cover)	M6
Number of Threaded Holes (Bottom Cover)	3
Threaded Hole Size (Bottom Cover)	M6
Distance Between Threaded Holes	93mm
Maximum Outside Diameter	125mm

Vibration Isolation - Dynamic Characteristic Values

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Force(Load) (KN)	1.1	1.5	2	2.4	2.8	3.2	0.7
Spring Rate (N/mm)	44	56	68	80.5	92.5	104
Natural Frequency f0 (Hz)	3.2	3	3	2.9	2.9	2.8

Pneumatic Application - Static Characteristic Values

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Height H (mm) 140	0.8	1.14	1.48	1.82	2.18	2.54	0.74
Height H (mm) 120	1.36	1.86	2.37	2.89	3.4	3.93	0.66
Height H (mm) 100	1.82	2.45	3.09	3.73	4.38	5.03	0.54
Height H (mm) 80	2.29	3.06	3.84	4.62	5.41	6.21	0.4

Applications

Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles
On household products such as washing machines
Special shock absorbers for bicycles
On commercial lawn mowers
In the medical equipment industry (e.g., on wheelchairs)
